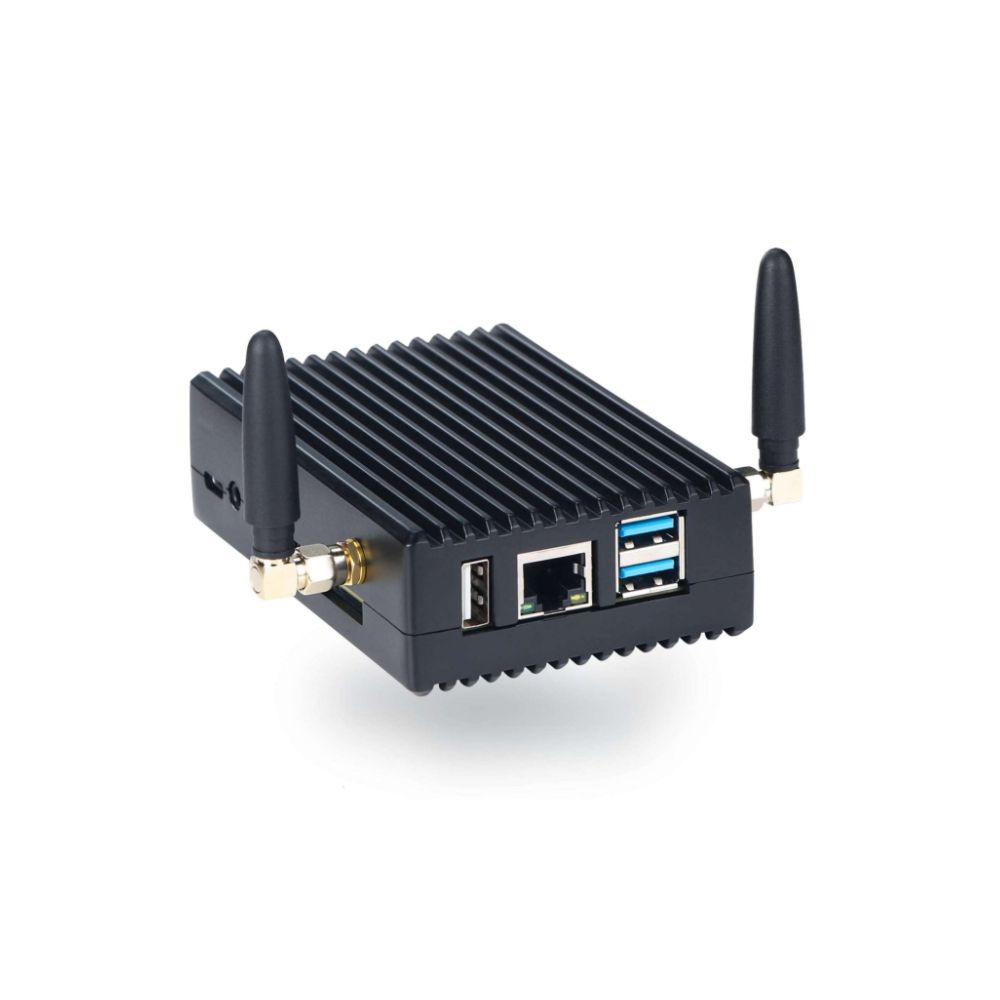

RK3588S
- 4-core Cortex-A76 and 4-core Cortex-A55 processors, with a clock speed of up to 2.4GHz
- 6 TOPS high-performance computing, Mali-G610 4-core GPU, supports INT4/INT8/INT16/FP16 computations
- Supports external GPIO expansion
- Widely used in artificial intelligence, AI edge computing, and other fields
| Category | Specification |
|---|---|
| System | |
| SoC | RK3588S |
| CPU | RK3588S Octa-core |
| GPU | Mali-G610 MP4 |
| NPU | 6 TOPS |
| Memory | 8GB / 16GB |
| Storage & Expansion | eMMC 64GB / 128GB / 256GB |
| Video | |
| GPU | Mali-G610 |
| Hardware Codec | JPEG Encoder/Decoder; 8K Video Encoder (H.265/H.264); 8K 10-bit Video Decoder (H.265/H.264/VP9/AV1) |
| Display Interfaces | 1 × HDMI 2.1; supports dual display; 4K output; up to 8K@60Hz; Type-C 1080p |
| Network | |
| Ethernet | Gigabit Ethernet |
| Wireless | 2.4G + 5G Dual-band WiFi + Bluetooth |
| I/O Interfaces | |
| USB | 2 × USB 3.0; 1 × USB 2.0 |
| RS232 | Not supported |
| Audio | 3.5mm headphone output / microphone input |
| SIM | Not supported |
| Others | Watchdog (optional); RTC supported |
| Power | |
| Input Type | Type-C DC 5V – 3A |
| Buttons/Indicators | Supported |
| Physical Parameters | |
| Chassis Dimensions | 106 × 71 × 32 mm (4.17 × 2.8 × 1.26 in) |
| Package Dimensions | 180 × 75 × 35 mm (7.09 × 2.95 × 1.38 in) |
| Net Weight | 0.3 kg (main unit: 0.29 kg; Wi-Fi antenna: 0.01 kg) — 0.66 lbs |
| Gross Weight | 0.65 kg (1.43 lbs) |
| Software | Android 12, Debian 11, Ubuntu 22.04 |
| Environment | |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Humidity | 0 ~ 85% RH (non-condensing) |
| Safety Certifications | CCC, CE, ISO |
| Ordering Info | |
| Product Model | RK3588S |
| SoC | RK3588S |
| Memory | 8GB |
| Flash | 64GB eMMC (customizable) |
| LAN | 1 |
| RS485 | 0 |
| RS232 | 0 |
| HDMI | 1 |
| WiFi | 1 |
| TF | 0 |
| SIM | 0 |
| Packing List | |
| Power Adapter | USB-C 5V–3A |
| WiFi Antenna | SMA × 2 |
| VESA Mount Kit | None |
| User Manual | Updated version |
| Certificate of Compliance | Universal × 1 |
